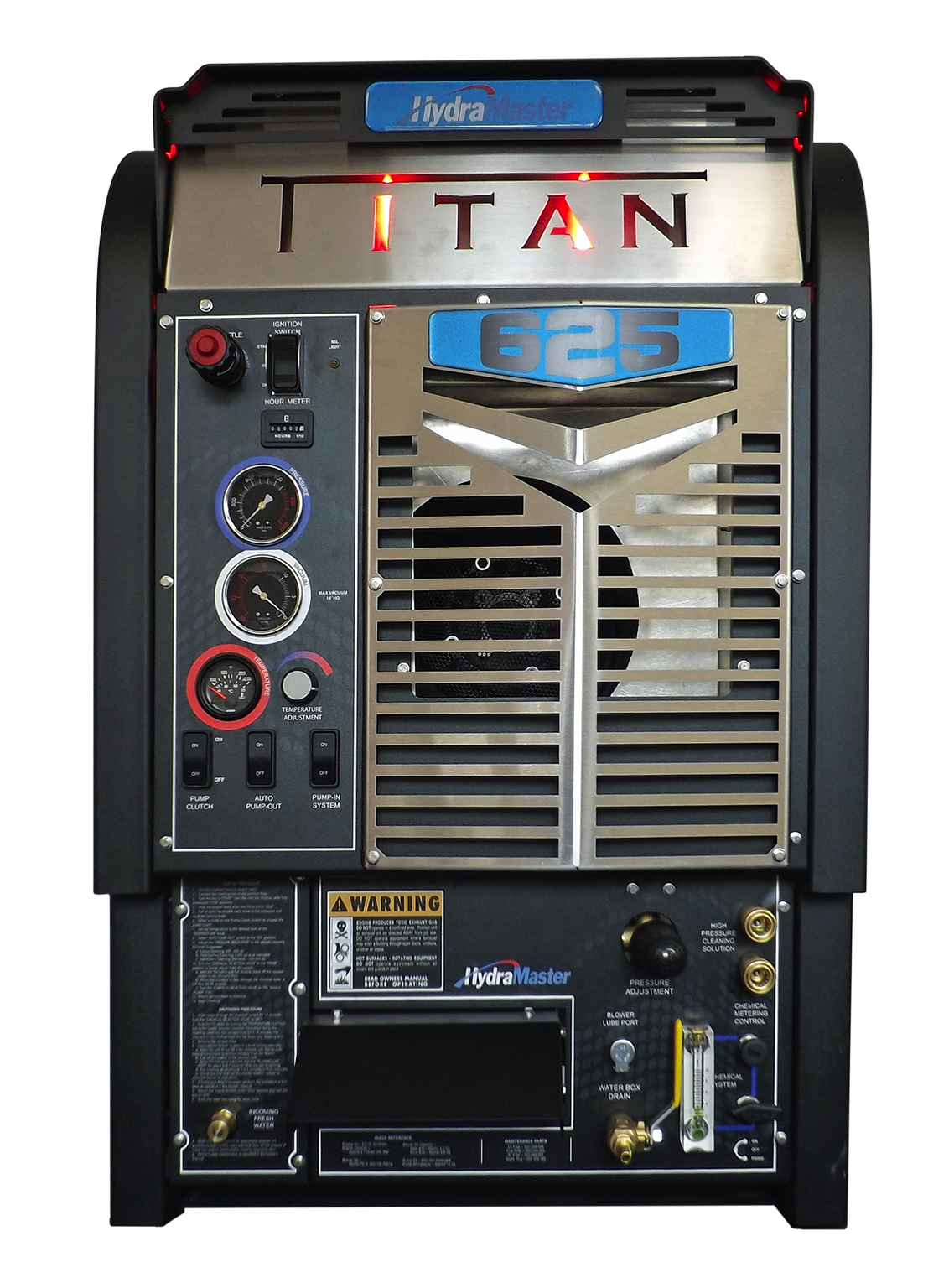

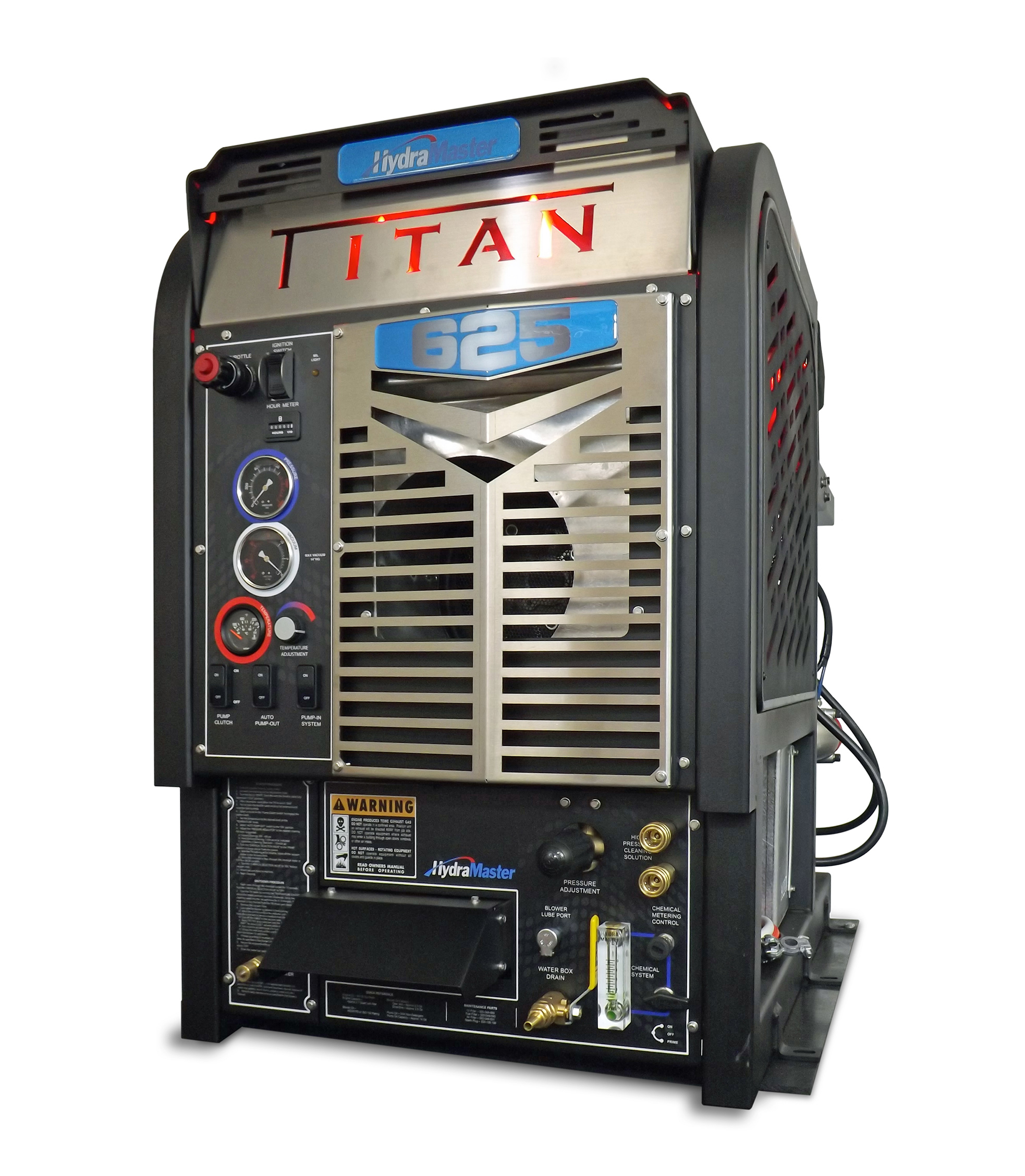

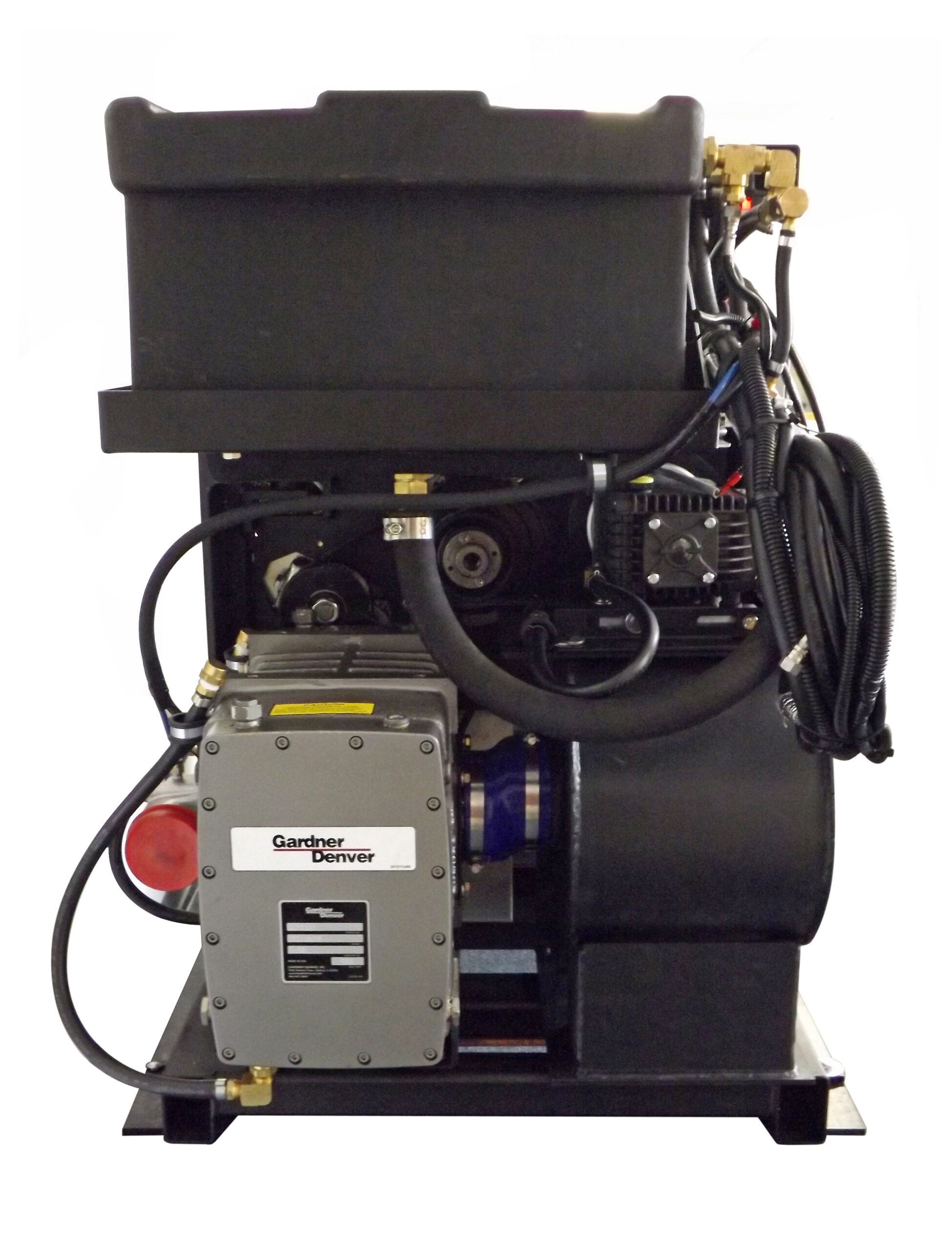

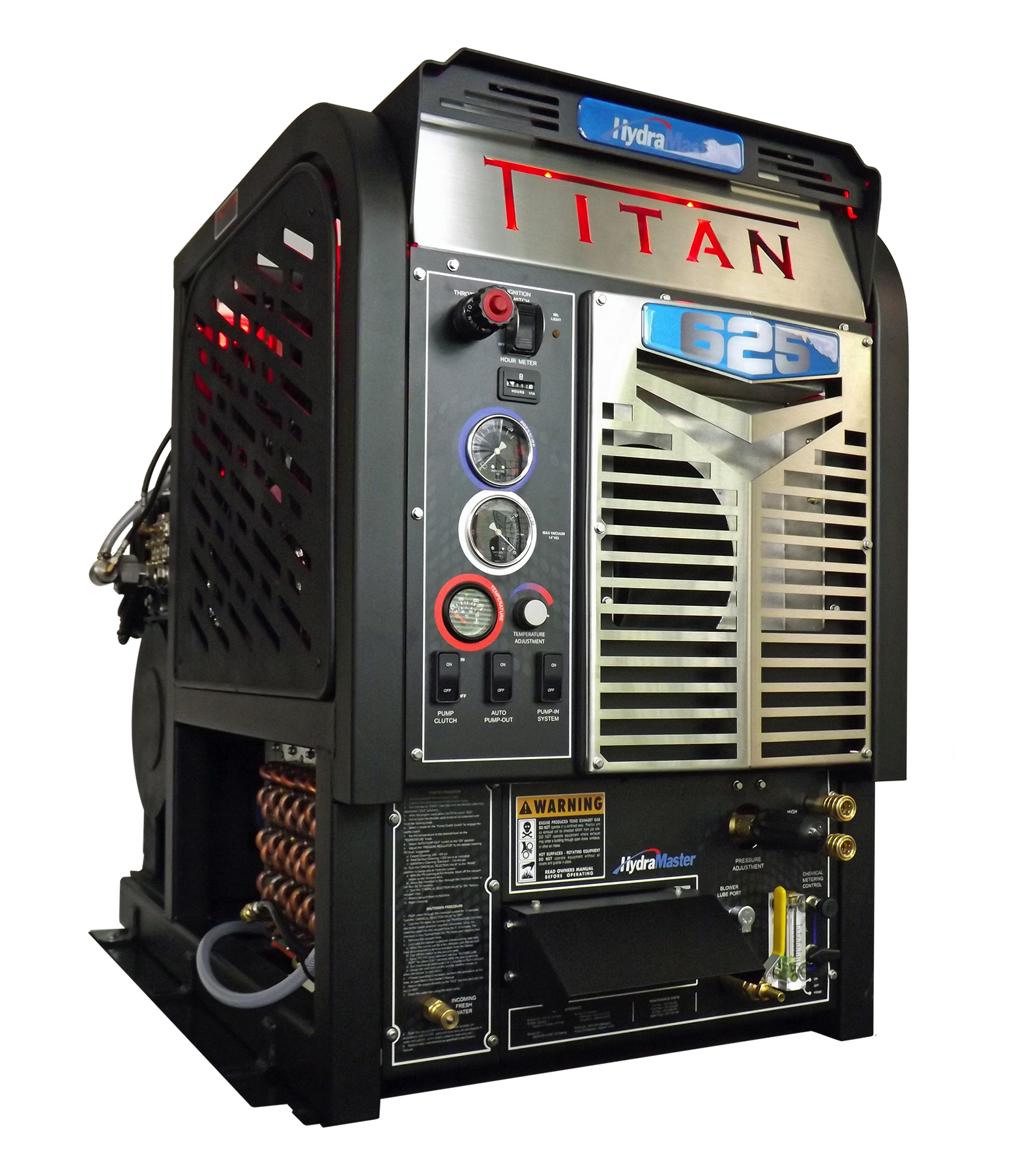

TITAN 625 – The Ultimate Professional Truckmount

SKU: 750-012-759-10


TITAN 625 Professional Truckmount



✅ Massive Airflow for Faster Drying: Dominator 4009 Blower produces 500+ CFM, enabling longer hose runs and drastically reduced dry times.
✅ Streamlined, Reliable Design: Tri-3VX Belt Drive, no diverter valve, and minimized wiring increase reliability and simplify your workday.

Applications:

✔ Dual Wand Carpet Cleaning ✔ Long-Reach Residential & Commercial ✔ Pressure Washing with Recovery ✔ Restorative Tile, Stone & Concrete ✔ High-Volume Water Extraction

The TITAN 625 is the ultimate professional workhorse, engineered to make you want to go to work. It combines a massive 38HP EFI engine with a 500+ CFM Dominator blower and a streamlined, service-friendly design. The Tri-3VX Belt Drive and simplified plumbing increase reliability, while the dual-wand plumbing and exceptional heat (up to 245°F) double productivity on any task—from deep carpet cleaning and restorative hard surface work to high-pressure washing and major water extraction. This is the machine that delivers every day.

Top Features:

✅ 38HP EFI Powerhouse: Electronic Fuel Injection delivers robust torque, optimizes performance, and achieves remarkable 1.6 GPH fuel efficiency for an engine this size.

✅ Peak Performance: 38HP Industrial EFI Air-Cooled Engine delivers maximum, cost-efficient power for the most demanding jobs.

✅ Engineered for Simplicity & Uptime: The streamlined design, Tri-3VX belt system, and easy-access components mean less complexity, easier maintenance, and more billable hours.


Find Local Authorized Distributor

Schedule a TITAN 625 Consultation


Why the TITAN 625 is the Professional’s Choice

Uncompromising Power for Any Job: From dual-wand commercial carpets to restorative concrete and emergency water extraction, one machine handles it all with authority.
Maximum Productivity & Reach: 500+ CFM and dual-wand capability allow you to tackle larger projects faster and service buildings with longer hose runs confidently.
Backed by the Best Support: The comprehensive HydraMaster Hassle-Free Ownership Experience ensures your business keeps running smoothly, protecting your investment long-term.

Clean Virtually Every Hard Surface With Confidence

With this truck mount, you can professionally clean nearly virtually every hard surface your customers have. Tile, grout, vinyl, LVP, laminate, stone, and other hard surfaces are all fair game and deliver dramatic, high-impact results.

An easy way to close more hard surface jobs is to offer a free 3 ft x 3 ft test clean in a visible area. Most homeowners say yes immediately because there is no risk and no pressure. Once that small section is cleaned, the difference is obvious. The cleaned area looks dramatically brighter and fresher, while the surrounding floor instantly looks darker and grimier by comparison.

At that point, customers almost always ask you to continue with the rest of the flooring for two simple reasons. First, the test spot proves how effective the cleaning really is. Second, once they see how dirty the rest of the floor looks next to the cleaned area, they do not want to leave it that way. This simple demo turns hesitation into an easy yes and consistently adds more revenue to every job. Customers don’t typically view their hard surface floors as NEEDING a cleaning, so if you do this test they will see the value.

Support Guides and Manuals

Titan 625 — Titan 625 Owners Manual — Owner’s Guide/Maintenance Schedule

Technical Specifications

Power & Drive System:

  • Engine: 38HP Industrial EFI Air-Cooled Engine

  • Fuel System: Electronic Fuel Injection (EPA Approved)

  • Drive: Tri-3VX Belt Drive Power Delivery System

  • Fuel Use: ~1.6 GPH

Vacuum System:

  • Blower: Dominator Tri-Lobe, Tri-Flow 4009 Blower

  • Performance: 500+ CFM (Up to 510 CFM)

Solution & Pressure System:

  • Pump: Dominator TXH Series High Performance Pump

  • Flow & Pressure: 4.0 GPM, up to 1,200 PSI Heated

Heating System:

  • Type: MAX-TEMP Thermal Capture & Heat Exchange System

  • Temperature: Up to 245°F (Intermittent) / 180°F (Continuous High-Pressure)

Physical Specifications:

  • Dimensions: 26”W x 45”D x 39”H

  • Weight: 850 lbs (Console)

  • Recovery Tank: 70 Gallon MaxxAir™ (Standard)

Standard Equipment

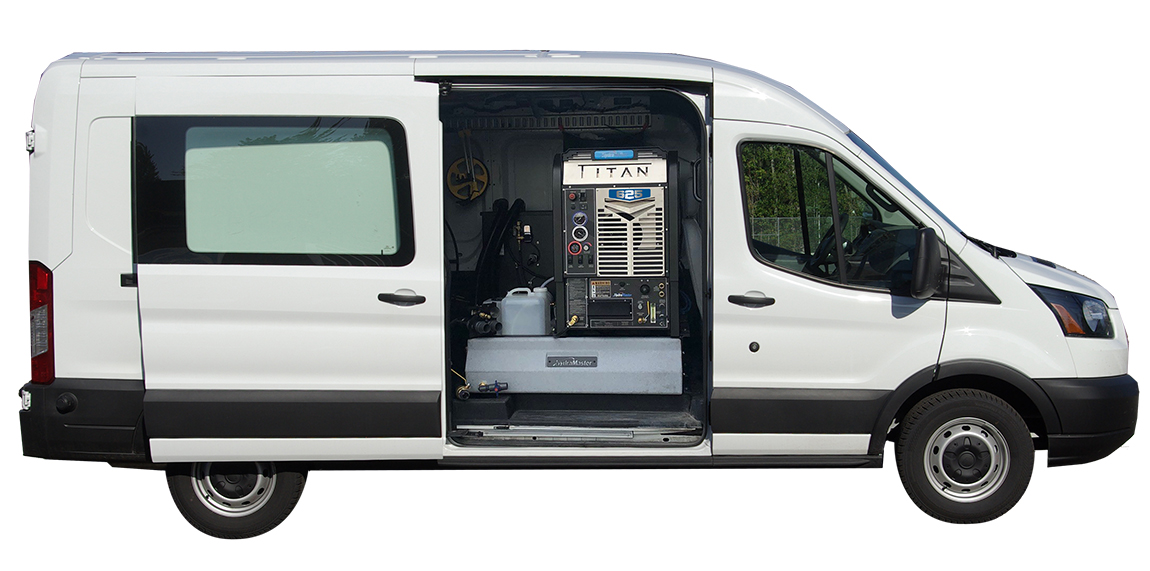

The TITAN 625 arrives complete and ready for professional installation:

  • 38HP EFI Air-Cooled Engine with Tri-3VX Belt Drive

  • Dominator 4009 Blower (500+ CFM) & TXH Series Solution Pump

  • 70 Gallon MaxxAir™ Recovery Tank

  • Factory Dual Wand Plumbing with Two Solution Outlets

  • 1.5” EVOLUTION Wand with 10 ft Whip Line

  • 100’ x ¼” Solution Hose & 100’ x 2” Vacuum Hose

  • Runtime Hour Meter, Chemical Flow Meter & Control Valve

  • Vacuum Gauge (0-30″ Hg) & Solution Pressure Gauge (0-1200 PSI)

  • Pre-wired Pump-in & AWDS Switches, Clutch Package for Flood Work

  • Complete Van Installation Kit, Battery Box, Operation Manual

  • ClubHydraMaster Leather Patch Ball Cap

Options & Upgrades

✅ 100 Gallon Maxx-Air Recovery Tank: For maximum capacity on large-loss restoration sites.

✅ AWDS (Automatic Wastewater Disposal System): For efficient pump-out on major jobs.

✅ EVOLUTION Tool Series: 2” Wand, Stair Wand, Flood Wand, Glided Upholstery Tool.

✅ RX20 NEXTGEN / RX-15H Rotary Tools: Advanced cleaning for carpets and hard surfaces.

✅ Freshwater Tank: 85G or 110G submount tanks and HydraCradle combos.

✅ High-Capacity Hose Reels: 200’-300’ manual or electric reels for extended reach.

The HydraMaster Hassle-Free Ownership Experience

Every TITAN 625 is backed by our industry-leading commitment to your success:

✅ Comprehensive 2-Year Warranty: Full “bumper to bumper” coverage across the entire machine with no “limited” exceptions.

✅ Local Expert Support: Nationwide network of authorized distributors for complete warranty and service.

✅ 24/7/365 Technical Support: Unmatched access to our expert team via phone, online, and app-based troubleshooting.

✅ Streamlined Service: Faster, easier warranty process to get you back to work quickly.
