TITAN 425™ Professional Truckmount System

TITAN 425™ Professional Truckmount System
SKU: TITAN-425-01

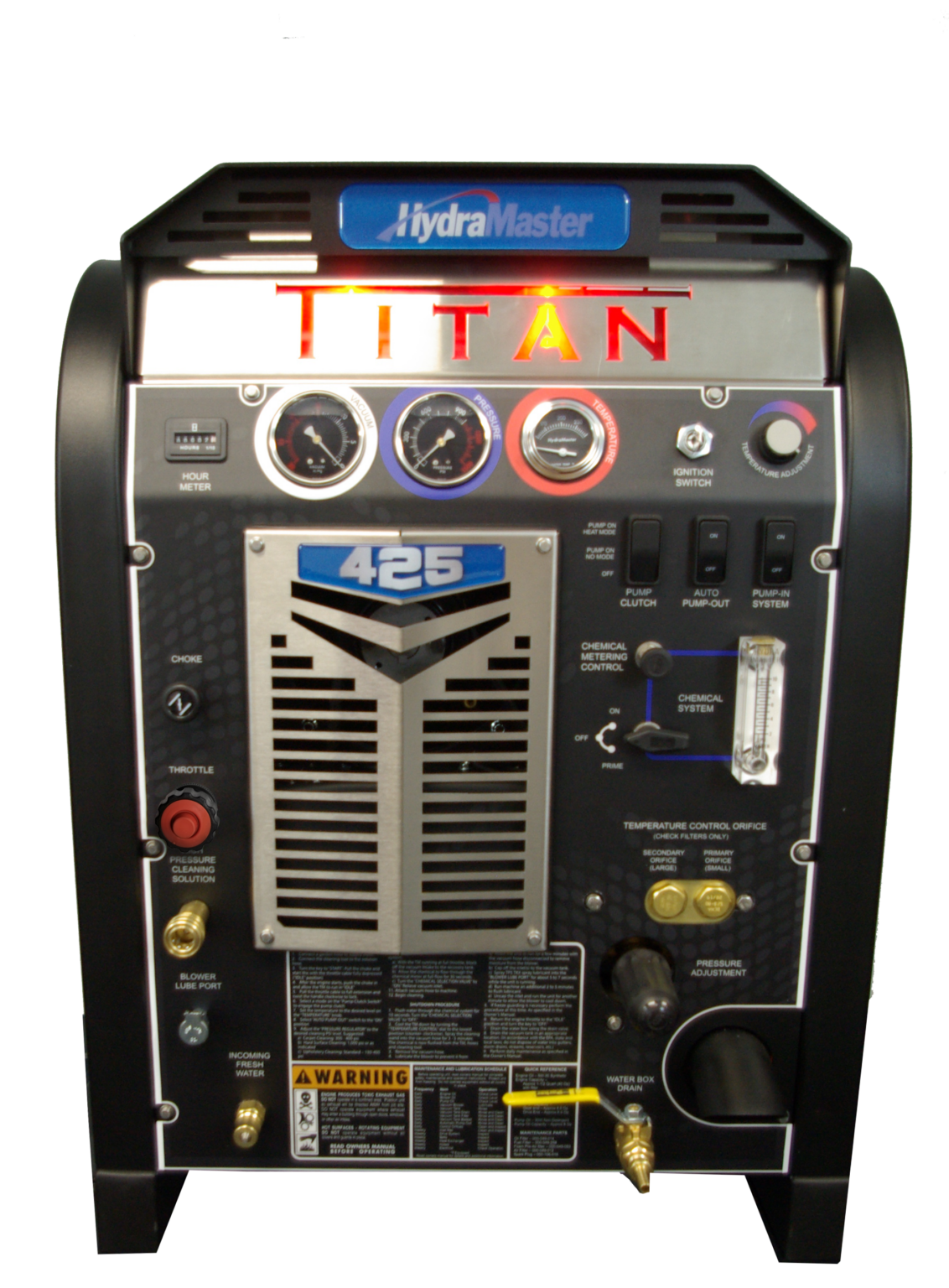

TITAN 425 Professional Truckmount

✅ Tough as Nails TITAN Quality: Legendary HydraMaster reliability built since 1971, now with a sleek, professional design that impresses clients.
✅ Intuitive & Easy to Operate: Redesigned panel with clear graphics makes training new technicians faster and daily operation simpler.
✅ Uncompromising Performance & Heat: 23HP air-cooled engine and MAX-TEMP heat exchanger deliver 240°F cleaning temperatures for superior results on any surface.
Versatile Professional Applications:
✔ Residential & Commercial Carpet Cleaning ✔ Pressure Washing with Recovery ✔ Upholstery Cleaning ✔ Concrete, Stone, Tile & Grout ✔ Water & Flood Extraction

The TITAN 425™ embodies the perfect balance of legendary durability and modern usability. It delivers the “Tough as Nails” quality and uncompromising performance HydraMaster is known for, now packaged in a sleek, professional design. With its powerful 23HP engine, 240°F MAX-TEMP heat, and versatile capabilities—from deep carpet cleaning to pressure washing with full recovery—it’s the reliable workhorse that helps you maximize your investment. The intuitive control panel makes it easy to train crews and operate efficiently, ensuring you deliver optimum results to every customer.


Find a Local DealerGet a Quote for Your Fleet

Talk to HydraMaster About the TITAN 425


Key Features & Benefits

🏭 Proven Industrial Power: Reliable 23HP air-cooled engine with efficient 1.1 GPH fuel consumption, external oil cooler, and nationwide serviceability for maximum uptime.
💨 Dominator Vacuum Performance: Exclusive 4005 Tri-Lobe Blower delivers 350+ CFM with dual oil bath lubrication, helical gear drive, and reduced noise for powerful, quiet operation.
🔥 MAX-TEMP High Heat: Advanced tube and fin heat exchanger system reaches up to 240°F, providing incredible cleaning power that reduces chemical usage on all surfaces.
👨‍🏫 Designed for Your Crew: The intuitive panel layout and clear graphics significantly reduce training time and minimize operator errors, boosting job-site efficiency.
🔧 Maintenance Made Simple: Features like sight level windows on the blower, easy-access components, and durable construction cut down on service time and costs.

Support Guides and Manuals

Titan 425 — Owners Manual — Owner’s Guide/Maintenance Schedule

Technical Specifications

Power Plant:

  • 🔧 Engine: 23HP Industrial Air-Cooled Engine (2 Cylinder OHV)

  • 🔑 Ignition: Keyed Ignition

  • ⛽ Fuel Use: 1.1 GPH

Vacuum System:

  • 💨 Blower: Dominator™ Tri-Lobe 4005 Blower

  • 📈 Performance: 350+ CFM

Solution & Pressure System:

  • 🚰 Pump: Dominator TXH Series / General HTX-1813

  • 📊 Flow & Pressure: 4.0 GPM, up to 1,000 PSI

Heating System:

  • 🔥 Type: MAX-TEMP Thermal Capture & Heat Exchange System

  • 🌡️ Max Temp: 240°F

Physical Specifications:

  • 📐 Dimensions: 24″W x 32″H x 36″D (Slide-In)

  • ⚖️ Weight: 563 lbs (Console)

  • ⚗️ Recovery Tank: 70 Gallon MaxAir™ Tank (Standard)

Standard Equipment

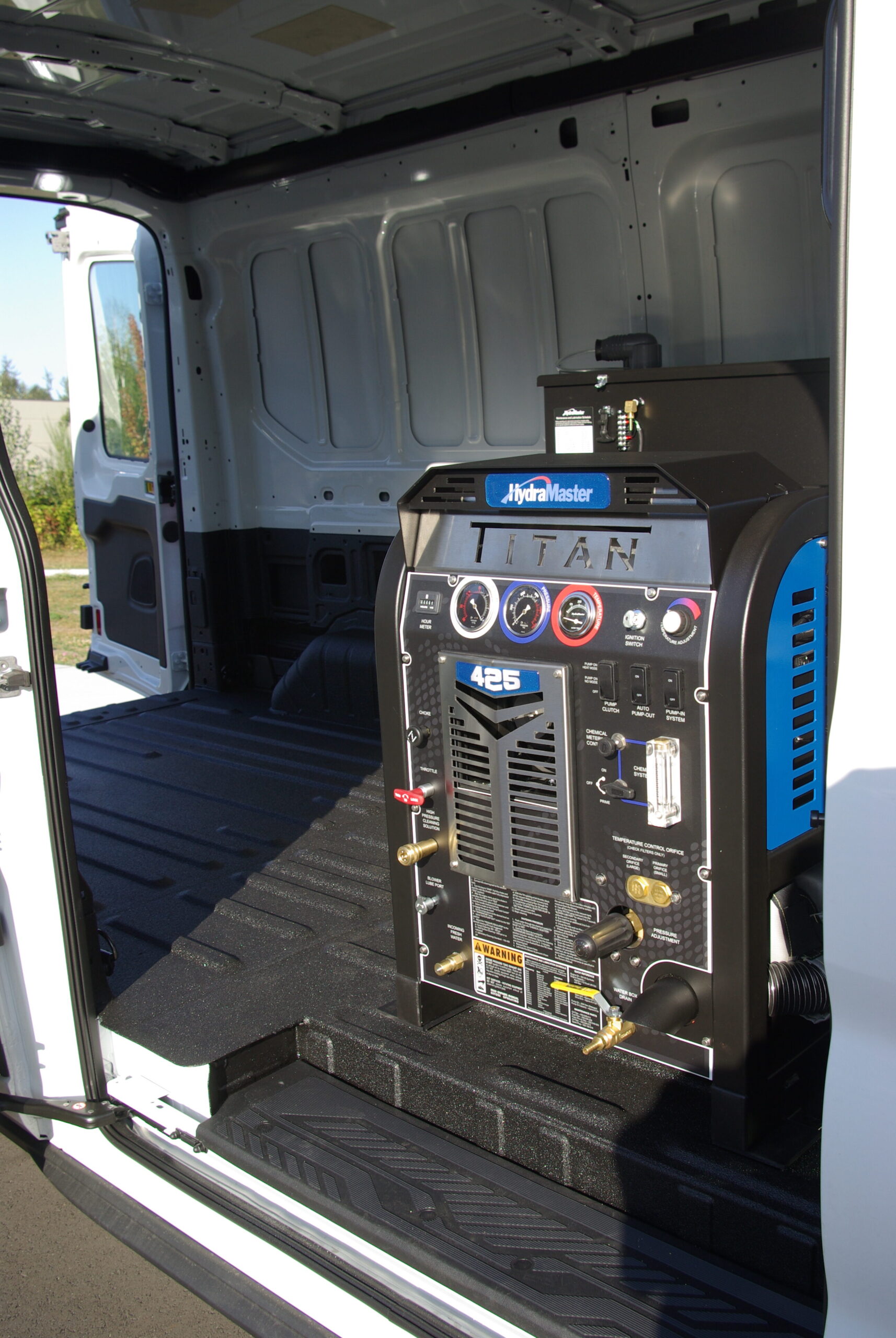

The TITAN 425 is delivered complete and ready for professional van installation:

  • 23HP Air-Cooled Engine with Keyed Ignition

  • Dominator 4005 Tri-Lobe Blower (350+ CFM)

  • Dominator TXH Series / General 4.0 GPM Solution Pump

  • 70 Gallon MaxAir™ Recovery Tank with Stainless Filter

  • Stainless Steel Carpet Cleaning Wand

  • ADC Heat Control Diverter Valve & Clutch Package for Flood Work

  • Runtime Hour Meter, Chemical Flow Meter & Control Valve

  • Vacuum Gauge (0-30″ Hg) & Solution Pressure Gauge (0-1000 PSI)

  • Pre-wired Pump-in & APO (Automatic Pump-Out) Switches

  • Two Solution Outlets, Fresh Water Inlet, Drain Valve

  • 100’ x ¼” Solution Hose, 100’ x 2” Vacuum Hose, 50’ Supply Line

  • Complete Van Installation Kit, Battery Box, Operation Manual

  • ClubHydraMaster Leather Patch Ball Cap

Professional Options & Upgrades

Expand your capabilities with these purpose-built accessories:

  • ✅ 100 Gallon Maxx-Air Recovery Tank: For extended capacity on large residential or commercial jobs.

  • ✅ AWDS (Automatic Wastewater Disposal System): For efficient wastewater pump-out to drains.

  • ✅ EVOLUTION Tool Series: 2” Wand, Stair Wand, Flood Wand, Glided Upholstery Tool, RX12 Rotary Hard Surface Wand.

  • ✅ RX20 NEXTGEN Rotary Jet Extraction Wand: Advanced cleaning tool for deep extraction.

  • ✅ Freshwater Systems: 70 Gallon submount tank or HydraCradle Tank/Hose Reel Combo.

  • ✅ High-Capacity Hose Reels: 200’-300’ manual or electric reels for maximum reach.

Why Professionals Choose the TITAN 425

🛡️ Legendary HydraMaster Reliability: Built with over 50 years of innovation, this “Tough as Nails” machine is an investment designed for the long haul, minimizing downtime.
🎯 Perfect Balance of Power & Value: Delivers the uncompromising heat, vacuum, and pressure professionals need for both residential and commercial work, without the premium price of larger models.
👔 Projects Professionalism: The sleek new design and intuitive interface not only make the job easier but also reinforce your company’s quality image to clients.
🔄 Unmatched Versatility: Be the single solution for your customers’ needs—from carpet and upholstery to tile, grout, and pressure washing—increasing your service offerings and profit potential.
