TITAN 575 HP Truckmount from Hydramaster

750-012-753-10 TITAN 575HP™  w/ 70 gal Maxx-Air™ recovery tank
750-011-753-10 TITAN 575HP™ w/ 100 gal Maxx-Air™ recovery tank


TITAN 575 HP Truckmount

✅ Dual Wand Workhorse: Factory-plumbed for dual wand operation, ready to double your productivity on residential and commercial jobs.
✅ Legendary TITAN Reliability: Built with HydraMaster’s legendary quality and innovation since 1971 for maximum uptime and ROI.
Applications:
✔ Dual Wand Cleaning ✔ Residential & Commercial Carpet ✔ Heated Pressure Washing w/Water Recovery ✔ Upholstery Cleaning ✔ Concrete, Stone, Tile & Grout ✔ Luxury Vinyl Plank ✔ Water & Flood Extraction

The TITAN 575HP from HydraMaster does more than clean faster, clean deeper, and reduce drying times. It transforms the image you provide to your customer by your investment into one of the finest cleaning powerhouses every constructed. It’s a cleaning beast for sure, but after you install it and your customers see it work, it will boost your business to a new level. The TITAN 575HP is not just a carpet cleaning machine — it’s now a complete surface cleaning plant – built for growth, flexibility, durability, and profitability. This includes heated pressure washing and dual wand capable hard surface and textile surface cleaning – all as a standard feature!

Top Features:

✅ Excellence Evolves: A dual wand cleaning beast with higher performance than ever

✅ A true multi-surface cleaning plant: carpet, rugs, upholstery, tile, LVP, concrete, and 2000psi heated pressure washing

✅ Stainless Steel Multi-Stage Heat Exchanger: captures heat from exhaust

✅ Cerakote Exhaust Coating: on all exhaust components for high heat resistance, corrosion protection, and thermal insulation properties


Find Local Authorized Distributor

Talk to HydraMaster About This Product


EXCELLENCE EVOLVES… Relentless Performance



What Enhancements Have Been Introduced with the new TITAN 575HP?

Now Standard on the 2026 TITAN 575HP: 2000 PSI Heated Pressure Washing Capability – This upgrade unlocks a major new revenue stream for operators by allowing you  to expand into:

✅ Heated (limited heat) pressure washing

✅ Hard surface and exterior cleaning

✅ Fleet, shop, and equipment washdowns

✅ Tile, concrete, luxury vinyl plank and stone restoration

What Makes This Possible?

Stainless Steel Engine/Blower Exhaust Heat Exchanger/Thermal Accumulator

✅ Upgraded to stainless steel for higher heat tolerance, durability, and pressure

✅ Enables consistent heated water at 2000 PSI

✅ Built for long-term reliability in high-demand applications

GP High-Pressure Piston Chemical Pump

✅  Commercial-grade GP pump

No diaphragm design = less service, less maintenance, longer life

✅  Built to handle continuous high-pressure operation

The TITAN 575HP Exhaust System now also comes standard with Cerakote® ceramic coating

✅ Reduces radiant heat inside the van

✅ Lowers internal ambient temperatures

✅ Protects surrounding components

✅ Extends lifespan of belts, hoses, wiring, and electronics

Result:
✅ Cooler van. Longer machine and component life. Less wear. Fewer service issues.

Key Features

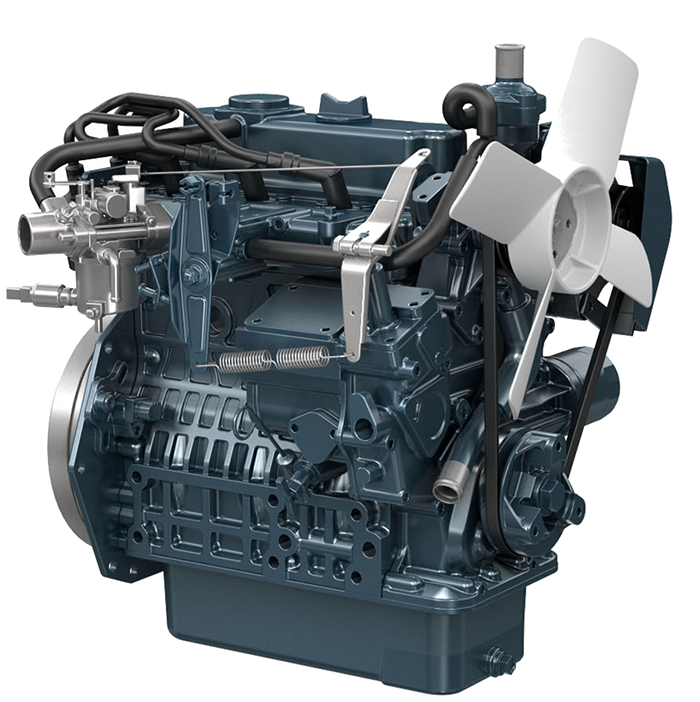

  • Liquid Cooled Kubota 32.5 HP Engine – a reliable engine that now includes an extended three year manufacturer’s warranty
  • Stainless Steel Multi-Stage Heat Exchanger – First, captures exhaust from blower and engine, second captures head from liquid cooled engine. Stainless steel construction allows for higher pressure setting and provides longer life.
  • High Pressure Piston Chemical Pump – provides limited heat high pressure and lower maintenance than less expensive diaphragm pumps.
  • Uncompromising Cleaning Solution Temperature – Best in class performance — single wand, dual wand, or hard surface cleaning. Unwavering heat from 230°-265°F under normal carpet cleaning condition. Industry leading performance at higher flow rates.
  • Dominator Tri-Lobe Vacuum Blower creates up to 400+ CFM for better extraction and faster drying
  • Patented Heat Control System – ADC Control Diverter manages heat for more consistent temperature and eliminates of dumping fresh water during cleaning/extraction.
  • Cerakote Exhaust Coating –  retains more internal heat, less radiant heat (cooler van and extends life of surrounding belts, hoses, etc. ) and higher level of corrosion protection.
  • Dual Wand Capable – plumbed and prepared for you to double your productivity when you
    need to!
  • Patented Heat Control System – ADC Control Diverter manages heat for more consistent temperature delivery and virtually eliminates dumping fresh water during cleaning and water extraction.
  • Quieter Performance – Opti Air Flow System and dual oil bath helical gear tri-lobe blower reduces noise resulting in the quietest machine in its class.
  • Simplified Maintenance – “Arms Length” design and removable magnetic panels allow for easy access to crucial components and serviceable parts.

Clean Virtually Every Hard Surface With Confidence

With this truck mount, you can professionally clean nearly virtually every hard surface your customers have. Tile, grout, vinyl, LVP, laminate, stone, and other hard surfaces are all fair game and deliver dramatic, high-impact results.

An easy way to close more hard surface jobs is to offer a free 3 ft x 3 ft test clean in a visible area. Most homeowners say yes immediately because there is no risk and no pressure. Once that small section is cleaned, the difference is obvious. The cleaned area looks dramatically brighter and fresher, while the surrounding floor instantly looks darker and grimier by comparison.

At that point, customers almost always ask you to continue with the rest of the flooring for two simple reasons. First, the test spot proves how effective the cleaning really is. Second, once they see how dirty the rest of the floor looks next to the cleaned area, they do not want to leave it that way. This simple demo turns hesitation into an easy yes and consistently adds more revenue to every job.

Technical Specifications

Power Plant:

  • Engine: 32.5HP Kubota Liquid-Cooled Engine (3-cylinder OHV) with 3-year warranty

  • Ignition: Keyless electronic start

  • Fuel Consumption: 1.7 GPH at 300 PSI

Vacuum System:

  • Blower: Dominator™ Tri-Lobe 4007 Blower with dual oil bath design

  • Performance: 400+ CFM vacuum for faster drying

Solution System:

  • Pump: General High Performance Piston High Pressure Solution Pump

  • Flow: 4.0 GPM volume

  • Pressure: Up to 2000 PSI heated pressure

Heating System:

  • Type: Multi-Stage Stainless Steel Thermal Accumulation & Heat Exchanger System

  • Temperature: 230°-265°F consistently

Physical Specifications:

  • Dimensions (Console): 26″W × 39″H × 45″D

  • Recovery Tank:

70 Gallon: 36 1/2” L X 10 1/2” W X 31” H

100 Gallon: 48 1/2” L X 14 1/2” W X 38 1/2”

  • Weight: 900 lbs

What’s Included (Standard Package)

The TITAN 575HP comes ready-to-work with:

  • 32.5HP Kubota Liquid-Cooled Engine with 3-year manufacturer’s warranty

  • General High Performance Piston High Pressure Solution Pump (4.0 GPM, Up to 2000 PSI)

  • Dominator™ Tri-Lobe 4007 Blower (400+ CFM) with dual oil bath design

  • 70 or 100 Gallon MaxxAir Recovery Tanks:

    A limonium, baked, or powder coat finish with stainless steel filter.

  • Factory Dual Wand Plumbing with Two Solution Outlets

  • ADC Heat Control Diverter Valve with patented heat control system

  • 100′ x 1/4″ High-Performance Solution Hose

  • 100′ x 2″ High-Performance Vacuum Hose

  • 1.5″ Evolution Wand with 10 ft Wand Whip Line

  • 50 ft Water Supply Line

  • Runtime Hour Meter & Chemical Flow Meter/Control Valve (0-10 GPH)

  • 5 Gallon Chemical Jug

  • Chemical Jug Holder with vacuum hookups

  • Remote Vacuum and dump hose manifold assembly

  • Vacuum Gauge (0-30″ Hg) & Solution Pressure Gauge (0-2000 PSI)

  • Keyless Electronic Ignition & Battery Box

  • Pre-wired AWDS Switch & Pump Clutch Switch

  • Diverter/Clutch Package for Flood Work

  • Van Installation Kit

  • Operation & Maintenance Manual Download Instructions

  • ClubHydraMaster Leather Patch Ball Cap

Options & Upgrades

Customize your TITAN 575HP with these professional upgrades:

✅ AWDS – Automatic Wastewater Disposal System – Pump-out convenience

✅ RX20 NEXTGEN Rotary Jet Extraction Wand – Advanced cleaning

✅ DriMaster Upholstery Tools – ClearVIEW and Series 3 options

✅ EVOLUTION Series Tools – 1.5”, 2”, Stair wand, Flood extraction wand. Hard Surface glide with Squeegee, for 1.5” wand.

✅ 85 Gallon Submount Freshwater Tank – Onboard water supply

✅ HydraCradle Freshwater Tank/Hose Reel Combo

✅ 200-300′ Capacity Hose Reels – Manual or electric

✅ Through Floor Exhaust Kit

The HydraMaster Hassle-Free Ownership Experience

Every TITAN 575HP is backed by our industry-leading commitment to your success:

✅ Comprehensive 2-Year Warranty: 2 Year Full “bumper to bumper” coverage on other items with no “limited” exceptions. Special 3 year manufacturer warranty on Kubota engine

✅ Local Expert Support: Nationwide network of authorized distributors for complete warranty and service.

✅ 24/7/365 Technical Support: Unmatched access to our expert team via phone, online, and app-based troubleshooting.

✅ Streamlined Service: Faster, easier warranty process to get you back to work quickly.
