CDS 4.8 SV for GM and Chevy Truckmount
Vehicle Compatibility

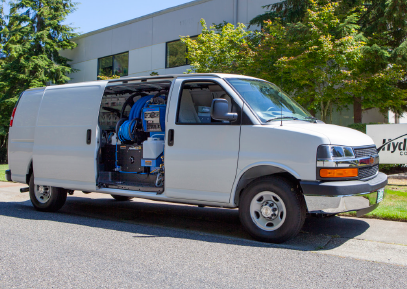

Primary Installation: 2021+ GMC/Chevy 2500 & 3500 Express vans with:
-
V-8, 6.6L engine
-
V-6, 4.3L engine
Legacy Vehicles: For 2020 & prior Chevy/GMC vans with V-8 engines, contact distributor for availability of compatible front-end power transfer kits.
The CDS 4.8 SV Direct Drive represents the pinnacle of truckmount engineering with 25% increased vacuum performance, next-generation heat exchange technology, and the industry’s most compact footprint. Engineered specifically for 2021+ Chevy/GMC Express vans, this system delivers unparalleled power while maximizing your cargo capacity for restoration equipment.
Top Features:
✅ Most Powerful CDS with 485 CFM Vacuum: Features a Dominator Tri-Lobe 4009 blower delivering 25% increased airflow for superior extraction and faster drying on commercial and restoration jobs.
✅ Advanced Plate Heat Exchanger: New PHE technology replaces shell-and-tube design – smaller, lighter, more consistent heat delivery.
✅ Streamlined for Next-Gen GM Vans: Engineered specifically for modern Chevy/GMC V-6 and V-8 engines with enhanced durability and simplified serviceability for maximum uptime.
Talk to Us About The CDS 4.8 SV
Why Professionals Choose the CDS 4.8 SV
Secure Night Operations: Keep your valuable equipment protected inside your van during commercial night work.
All-Weather Capability: Work in any conditions without exposing equipment to elements.

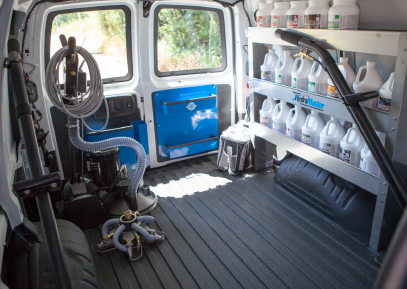

Maximum Cargo Flexibility: Small footprint means more room for restoration gear, power wands, chemicals, & equipment.
Proven Reliability: Industry’s longest track record of performance with highest resale value.
Fleet Operator Favorite: More large companies choose HydraMaster CDS than any other truckmount.
Versatile Applications: From flood restoration to pressure washing – say “YES” to more jobs and make more money.
Clean Virtually Every Hard Surface With Confidence
With this truck mount, you can professionally clean nearly virtually every hard surface your customers have. Tile, grout, vinyl, LVP, laminate, stone, and other hard surfaces are all fair game and deliver dramatic, high-impact results.
An easy way to close more hard surface jobs is to offer a free 3 ft x 3 ft test clean in a visible area. Most homeowners say yes immediately because there is no risk and no pressure. Once that small section is cleaned, the difference is obvious. The cleaned area looks dramatically brighter and fresher, while the surrounding floor instantly looks darker and grimier by comparison.
At that point, customers almost always ask you to continue with the rest of the flooring for two simple reasons. First, the test spot proves how effective the cleaning really is. Second, once they see how dirty the rest of the floor looks next to the cleaned area, they do not want to leave it that way. This simple demo turns hesitation into an easy yes and consistently adds more revenue to every job. Customers don’t typically view their hard surface floors as NEEDING a cleaning, so if you do this test they will see the value.
Technical Specifications
Power Plant
-
Engine: Host Vehicle Engine (Chevy/GMC 6.6L V-8 or 4.3L V-6).
-
Drive System: OverDrive™ Power Train Technology with balanced double U-jointed self-aligned drive shaft.
Vacuum System
-
Blower: Dominator™ Tri-Lobe, Tri-Flow 4009 Blower (HydraMaster exclusive).
-
Performance: 485 CFM (at 10” Hg) to 558 CFM (at 0” Hg).
Solution & Pressure System
-
Pump: Dominator™ TXH Series 3-Piston Plunger Pump.
-
Max Pressure: Operator Adjustable 0–1,200 PSI.
-
Clutch: Heavy-duty Electrically Activated Ogura Clutch (176 ft-lbs torque).
Heating System
-
Heat Exchanger: Multi-Stage Thermal Accumulation & Plate Heat Exchanger (PHE) technology.
-
Standard Boost: Salsa™ Heat Booster System (now standard on SV models).
-
Max Temperature: Up to $235^\circ\text{F}$ stable, consistent solution temperature.
Physical Specifications
-
Dimensions: 23”W x 41.5”H x 61”L (Console/Power Pack).
-
Weight: 650 lbs (Console and tank).
-
Recovery Tank: 100 Gallon MaxxAir™ Recovery Tank (Standard).
The HydraMaster Hassle-Free Ownership Experience
✅ Comprehensive 3-Year Warranty: “Bumper to bumper” coverage across entire machine
✅ Local Distributor Support: Complete warranty and service network nationwide
✅ 24/7/365 Technical Support: Online, app-based, and phone troubleshooting
✅ Industry’s Best Resale Value: HydraMaster longevity ensures maximum ROI
✅ Dual Wand Plumbing: Standard configuration for maximum productivity
✅ Fleet-Ready Design: Preferred by largest cleaning & restoration companies
The HydraMaster Hassle-Free Ownership Experience
Every CDS 4.8 SV is backed by our industry-leading commitment to your success:
✅ Comprehensive 2-Year Warranty: Full “bumper to bumper” coverage across the entire machine with no “limited” exceptions.
✅ Local Expert Support: Nationwide network of authorized distributors for complete warranty and service.
✅ 24/7/365 Technical Support: Unmatched access to our expert team via phone, online, and app-based troubleshooting.
✅ Streamlined Service: Faster, easier warranty process to get you back to work quickly.
