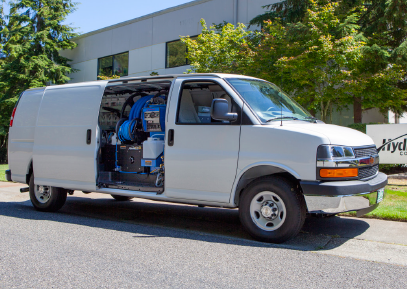

CDS 4.8 Direct Drive Truckmount for GM / Chevy Vans
What’s Included
-
CDS 4.8 Direct Drive Power Unit
-
100-Gallon Recovery Tank System
-
Dual Solution Outlets
-
Three-Speed Control System
-
OverDrive Power Train Components
-
Installation Mounting Hardware
-
Complete Wiring Harness
-
Control Panel with Gauges
-
Operation & Maintenance Manual
For two decades, the CDS 4.8 has been the industry’s most popular van-powered cleaning system. Featuring OverDrive Power Train Technology that simplifies tough cleaning jobs and a compact 14-inch tank footprint that maximizes cargo space, this reliable workhorse delivers professional performance with three-speed settings, dual wand capability, and a large 100-gallon recovery tank for uninterrupted operation.
Top Features:
✅ The #1 selling Direct Drive Truckmount in the industry now more powerful than ever!
✅ Space saving design leaves more room for all of your other gear
✅ Easier maintenance. Easier to train new technicians
✅ Can operate with van doors closed: for security, quieter operation, and to protect contents from the weather
Talk to HydraMaster About This Product
Why Professionals Choose the CDS 4.8
Time-Tested Reliability: 20+ years of proven performance in thousands of installations across the country.
Easy to Train Crews: Simple operation means new technicians can be productive quickly with minimal training time.
Commercial-Grade Power: Handles tough commercial jobs with ease while being gentle enough for residential work.
Dual Operator Efficiency: Two solution outlets allow teams to work simultaneously, doubling productivity on large jobs.

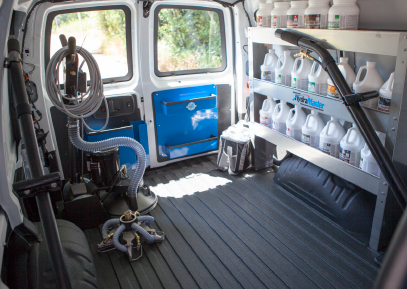

Van-Friendly Design: Compact footprint leaves maximum space for equipment, chemicals, and supplies in your work vehicle.
Excellent Resale Value: HydraMaster’s reputation for durability means your investment holds its value over time.
Clean Virtually Every Hard Surface With Confidence
With this truck mount, you can professionally clean nearly virtually every hard surface your customers have. Tile, grout, vinyl, LVP, laminate, stone, and other hard surfaces are all fair game and deliver dramatic, high-impact results.
An easy way to close more hard surface jobs is to offer a free 3 ft x 3 ft test clean in a visible area. Most homeowners say yes immediately because there is no risk and no pressure. Once that small section is cleaned, the difference is obvious. The cleaned area looks dramatically brighter and fresher, while the surrounding floor instantly looks darker and grimier by comparison.
At that point, customers almost always ask you to continue with the rest of the flooring for two simple reasons. First, the test spot proves how effective the cleaning really is. Second, once they see how dirty the rest of the floor looks next to the cleaned area, they do not want to leave it that way. This simple demo turns hesitation into an easy yes and consistently adds more revenue to every job. Customers don’t typically view their hard surface floors as NEEDING a cleaning, so if you do this test they will see the value.
Technical Specifications
Power Plant
-
Engine: Host Vehicle Engine (GM 6.6L V-8, 4.3L V-6, or Ford Transit configurations).
-
Drive System: OverDrive™ Power Train Technology with double U-jointed flexible shaft.
Vacuum System
-
Blower: Dominator 4009 Tri-Lobe, Tri-Flow Blower.
-
Performance: 485 CFM (at 10” Hg) up to 558 CFM (at 0” Hg).
Solution & Pressure System
-
Pump: Dominator™ TXH Series 3-Piston Plunger Pump.
-
Max Pressure: Operator Adjustable 0–1,200 PSI.
-
Clutch: Heavy-duty Electrically Activated Ogura Clutch (176 ft-lbs torque).
Heating System
-
Heat Exchanger: Multi-parallel Plate Heat Exchanger (PHE) & Thermal Accumulation.
-
Standard Boost: Salsa™ Heat Booster System included (standard on 4.8 SV).
-
Max Temperature: Up to $235^\circ\text{F}$ stable solution temperature.
Physical Specifications
-
Dimensions: 23”W x 41.5”H x 61”L (Space-saving “between-the-seats” console).
-
Weight: 650 lbs (Power pack/console weight).
-
Recovery Tank: 100 Gallon MaxxAir™ Recovery Tank (Standard).
💡 Perfect For:
- Residential Cleaning Companies: Gentle yet effective for home carpet and upholstery cleaning
- Commercial Contractors: Powerful enough for large office buildings, hotels, and facilities
- Fleet Operators: Simple design makes it ideal for multiple vehicles and crews
- Growing Businesses: Scalable solution that grows with your company’s needs
- First-Time Truckmount Buyers: User-friendly system perfect for new business owners
The HydraMaster Hassle-Free Ownership Experience
Every CDS 4.8 is backed by our industry-leading commitment to your success:
✅ Comprehensive 2-Year Warranty: Full “bumper to bumper” coverage across the entire machine with no “limited” exceptions.
✅ Local Expert Support: Nationwide network of authorized distributors for complete warranty and service.
✅ 24/7/365 Technical Support: Unmatched access to our expert team via phone, online, and app-based troubleshooting.
✅ Streamlined Service: Faster, easier warranty process to get you back to work quickly.
